Place of Origin: | CHINA |
---|---|
Brand Name: | JULI |
Certification: | SGS,REACH,ROHS |
Model Number: | Y1 |
Minimum Order Quantity: | 1CubmicMeter |
Price: | $200-230/Cubmic meter |
Packaging Details: | Woven Bag,10-15kg/Bag |
Delivery Time: | 5-8 workdays |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 1000tons/Month |
Material: | HDPE | Color: | White |
---|---|---|---|
Nitrification Efficiency: | 400-1200gNH4-N/m3*d | Effective Specific Surface Area: | 900m2/m3 |
Product Name: | MBBR Bio Filter Media For Waste Water Treatment | Sample: | Free Sample Is Avaliable |
Highlight: | K3 MBBR Biofilter Media,900m2 m3 mbbr media surface area,fish farming MBBR Biofilter Media |

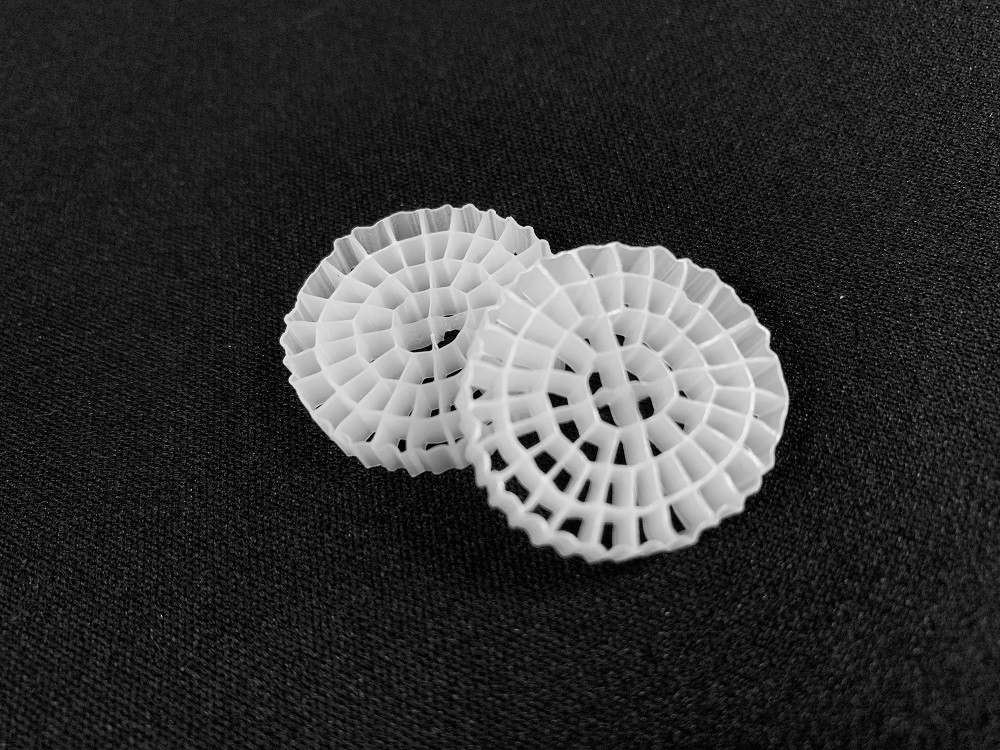

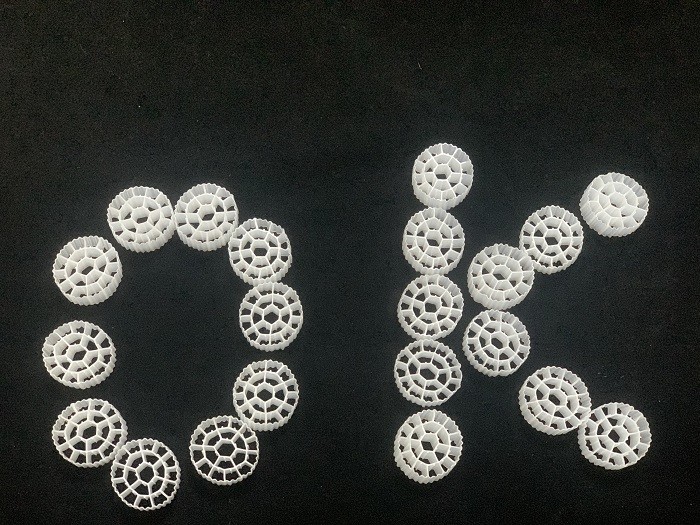

K1 K3 Biomedia MBBR Large Surface Area and long life service MBBR Biofilter Meia for fish farming
Product Description
MBBR media is a new kind of suspension carriers. It modified polymeric material with the promoted additions of bio-enzyme, it improves the enzymatic catalysis, so it possess excellences of larger specific surface, being easy to multiply biofilm, unease to fall off, high denitrification, good hydrophile, high biological activity and so on.
The MBBR media carriers are used for applications in Moving Bed Biofilm Reactor (MBBR) systems for the provision of a self-sloughing, auto-regulating attached growth biofilm treatment process. The biofilm media carriers installed in the wastewater treatment system provide a stable base for the growth of a diverse community of microorganisms. The biofilm carriers have a very high surface-to-volume ratio, allowing for a high concentration of microorganisms to thrive within the internally protected areas of the media. The carriers can be used for upgrading an existing extended aeration system, a single pass MBBR treatment process or they can increase the effective capacity of existing activated sludge systems as an Integrated Fixed-film Activated Sludge (IFAS) process.
So how does the MBR (Membrane Bioreactor) work?
Unlike the polishing process, the MBR is used as a tertiary water treatment step that has no return of active biomass to the biological process. Currently, most MBR processes in commercial places today make use of the membrane as a filter to which rejects all solid materials developed in the natural process.
Series product of Tongxiang juli palstic co.,ltd.
ITEM | Y1 | Y2 | Y3 | Y4 | Y5 | |
Rooms | rooms | 4 | 5 | 19 | 6 | 64 |
Size | mm | 11*7 | 10*7 | 25*10 | 16*10 | 25*4 |
Effective specific surface area | m2/m3 | 900 | 1000 | 600 | 800 | 1200 |
Density | g/cm3 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 |
Stacked | Pcs/m3 | >830000 | >850000 | >97000 | >260000 | >210000 |
Porosity | % | >85 | >85 | >90 | >85 | >85 |
Dosage | % | 15-68 | 15-70 | 15-67 | 15-67 | 15-70 |
Nitrification efficiency | gNH4-N/m3*d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
BOD5 oxidation efficiency | gBOD5/m3*d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
COD oxidation efficiency | gCOD/m3*d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 |
proper temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
Service life | Year | >20 | >20 | >20 | >20 | >20 |
