Place of Origin: | CHINA |
---|---|
Brand Name: | JULI |
Certification: | SGS,REACH,ROHS |
Model Number: | Y1-Y5 |
Minimum Order Quantity: | 1CubmicMeter |
Price: | $200-230/Cubmic meter |
Packaging Details: | Woven Bag,10-15kg/Bag |
Delivery Time: | 3-5 work days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 1000 CUBMIC METERS/MONTH |
Material: | HDPE | Color: | White |
---|---|---|---|
Nitrification Efficiency: | 400-1200gNH4-N/m3*d | Effective Specific Surface Area: | 900m2/m3 |
Density: | 0.98-1 | Product Name: | MBBR Bio Filter Media For Waste Water Treatment |
Highlight: | 11x7mm MBBR Biofilter Media,JULI Aquariums mbbr media for stp,Fda Carrier MBBR Biofilter Media |

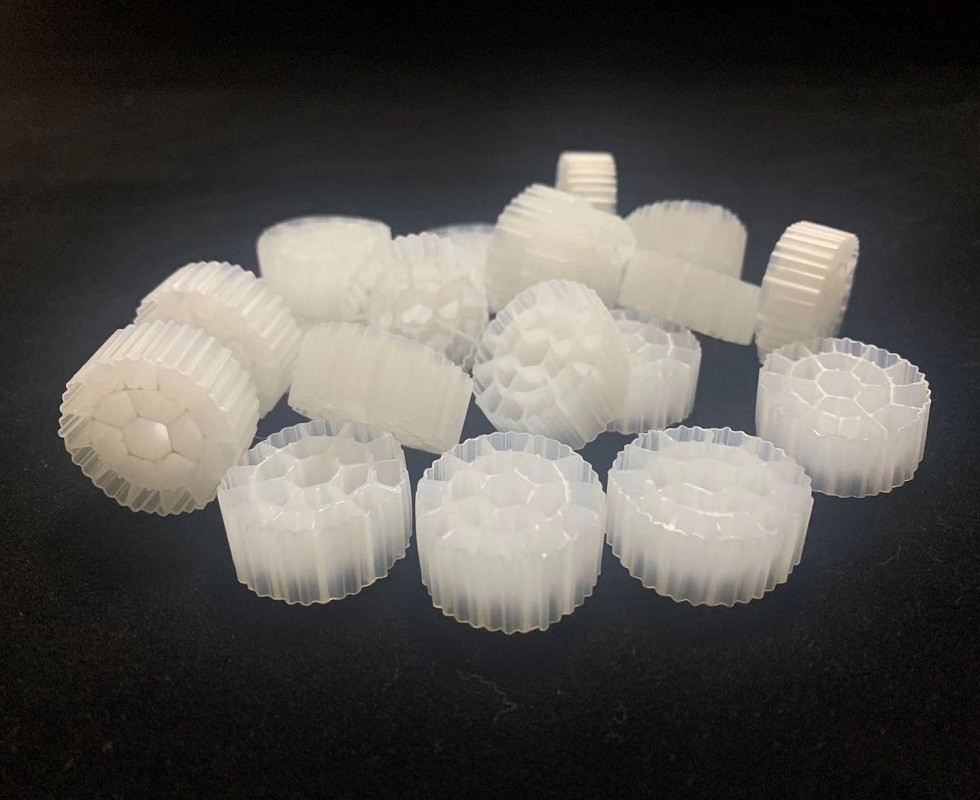

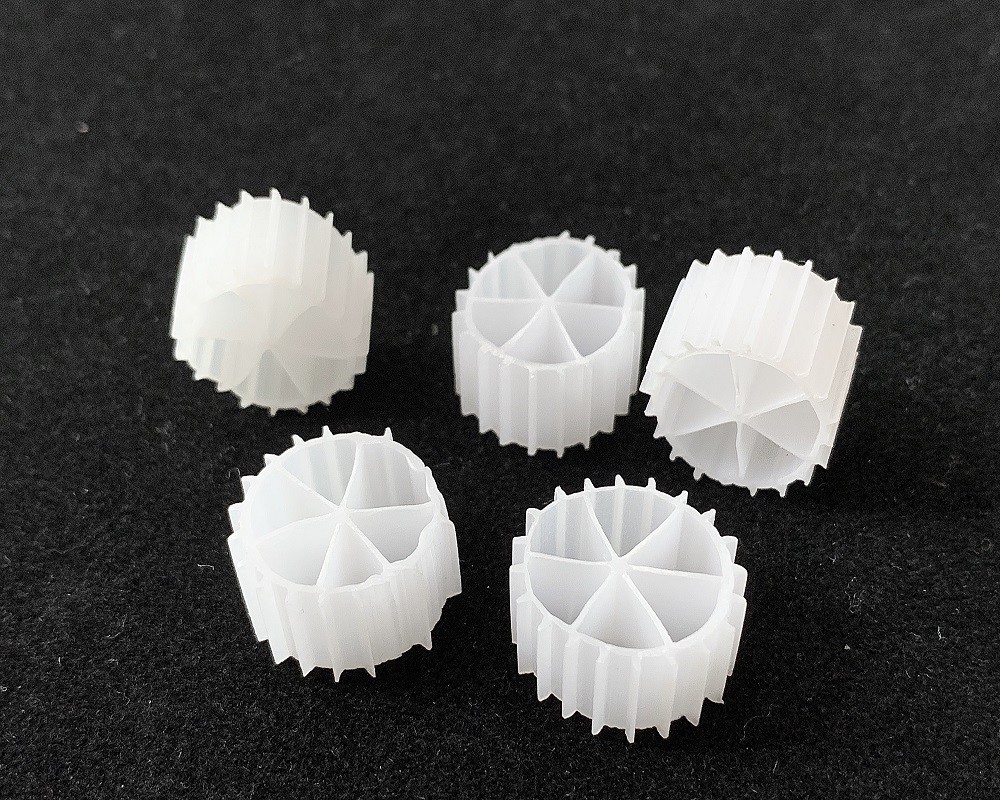

HDPE Shockproof Aquariums MBBR Filter Media white color fda carrier 11*7MM MBBR Biofilm Carrier
Description of MBBR Filter Media:
MBBR which is commonly known as moving bed biofilm reactor is a modern water treatment technology and process. It was first invented in the late in the 1980s by professor Hallvard of Norwegian University of science and technology.
Unlike most traditional water wastage treatment systems, MBBR is a highly effective biological water treatment process which is based on a combination of biofilm media and conventional activated sludge processes. This way, water can be treated in both anaerobic and aerobic environments.
MBBR is currently the best water treatment solution for high-strength water systems. This is mainly because of the biological nitrogen removal (BNR), which uses MBBR systems thus improving waste matter quality and increasing treatment capacity with no extra footprint growth. And you can use K1 media and MBBR media to improve water quality in MBBR systems.
The MBBR process is also made more perfect by the use of MBR (Membrane Bioreactor). This process is widely used for industrial and municipal wastewater treatment process.
Series product of Tongxiang juli palstic co.,ltd.
ITEM | Y1 | Y2 | Y3 | Y4 | Y5 | |
Rooms | rooms | 4 | 5 | 19 | 6 | 64 |
Size | mm | 11*7 | 10*7 | 25*10 | 16*10 | 25*4 |
Effective specific surface area | m2/m3 | 900 | 1000 | 600 | 800 | 1200 |
Density | g/cm3 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 |
Stacked | Pcs/m3 | >830000 | >850000 | >97000 | >260000 | >210000 |
Porosity | % | >85 | >85 | >90 | >85 | >85 |
Dosage | % | 15-68 | 15-70 | 15-67 | 15-67 | 15-70 |
Nitrification efficiency | gNH4-N/m3*d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
BOD5 oxidation efficiency | gBOD5/m3*d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
COD oxidation efficiency | gCOD/m3*d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 |
proper temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
Service life | Year | >20 | >20 | >20 | >20 | >20 |
